Lamella Clarifier 3×2 — up to 120 m³/h
Used lamella clarifier in a 30 ft container frame for up to 120 m³/h depending on the medium, stainless steel construction with PP scraper plates, weight approx. 8,000 kg.
السعر عند الطلب
- مادة اللوح
- stainless steel on container frame, PP scraper plates
- الحالة
- Gebraucht
- تم فحصه من قبل الفنيين لدينا
- شحن إلى جميع أنحاء العالم ومعالجة إجراءات التصدير
- التجديد وقطع الغيار عند الطلب
المواصفات الفنية
| مادة اللوح | stainless steel on container frame, PP scraper plates |
|---|---|
| الحالة | Gebraucht |
| معدات إضافية | Throughput: up to 120 m³/h depending on medium; Frame: 30 ft container frame; Dimensions (L x W x H): 7,580 x 2,435 x 3,000 mm; Weight: approx. 8,000 kg |
الوصف

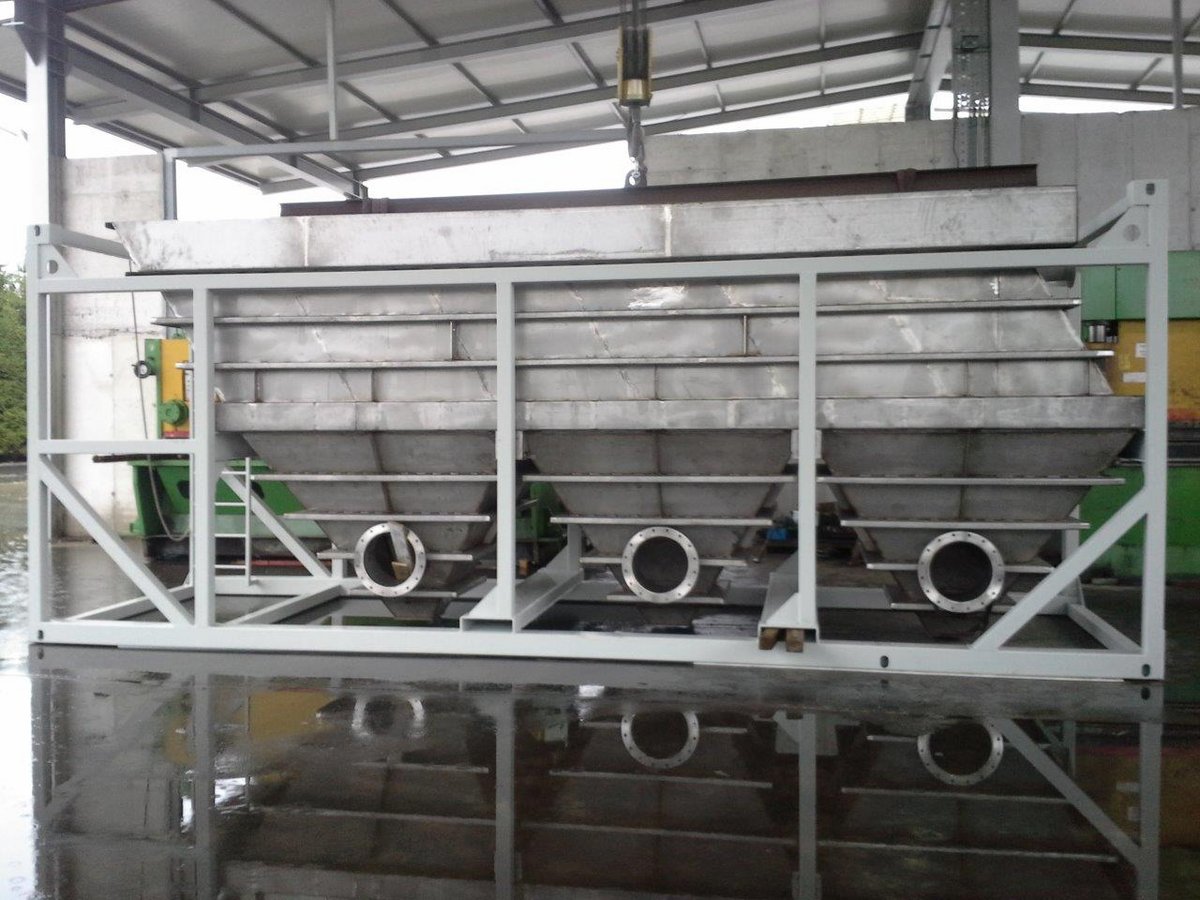

Used lamella clarifier (inclined plate clarifier) in a robust, high-capacity design for throughputs of up to 120 m³/h depending on the medium. The unit is built in stainless steel on a 30 ft container frame with scraper plates in PP; dimensions are 7,580 x 2,435 x 3,000 mm (L x W x H) and the weight is approx. 8,000 kg.
Dirty water enters the clarifier and is redirected below the lamella plates, flowing upwards between them so that solids settle onto the plates and slide down into the sludge hopper while clarified water is carried to the outlet. Lamella clarifiers are often used as a pre-thickening stage upstream of filter presses or decanters, allowing the downstream filter press to be sized smaller. An optional rake mechanism keeps the sludge flowable.
The plant is in good used condition and is available for purchase or rental. Inspection can be arranged by appointment; worldwide delivery is possible.
