Cutter Suction Dredger Z-243
Used self-manoeuvring cutter suction dredger Z-243 with approx. 600 operating hours, pump capacity up to approx. 350 m³/h, dredging depth approx. 5 m, 90 kW Deutz main engine.
Prix sur demande
- État
- Gebraucht
- Inspectée par nos techniciens
- Livraison dans le monde entier & gestion de l’exportation
- Remise en état & pièces de rechange sur demande
Caractéristiques techniques
| État | Gebraucht |
|---|---|
| Équipements complémentaires | Operating hours: approx. 600; Pump capacity: up to approx. 350 m³/h; Dredging depth: approx. 5 m; Overall length with extension: 13.20 m; Overall width: 2.90 m; Overall height: 2.70 m; Depth: 0.75 / 1.18 m; Draught (operational): 0.62 m; Suction pipe diameter: 150 mm; Dredging depth at 45° angle: extension 5.0 m; Fuel capacity: 300 l; Cutting speed: 0-90 rpm, variable and reversible; Cutter power: 10 kW / 13 hp; Main engine: Deutz, 90 kW / 120 hp; Road transportable: yes; Largest transport section: main pontoon with extension, 11.60 x 2.50 x 2.50 m, approx. 10 t; Cabin: one-man operation, low-noise; Hull: multiple pontoons with coupling system; Coating: marine coating system with cathodic protection; Cooling: closed cooling system; Consumption: low fuel consumption and low operating costs |
Description

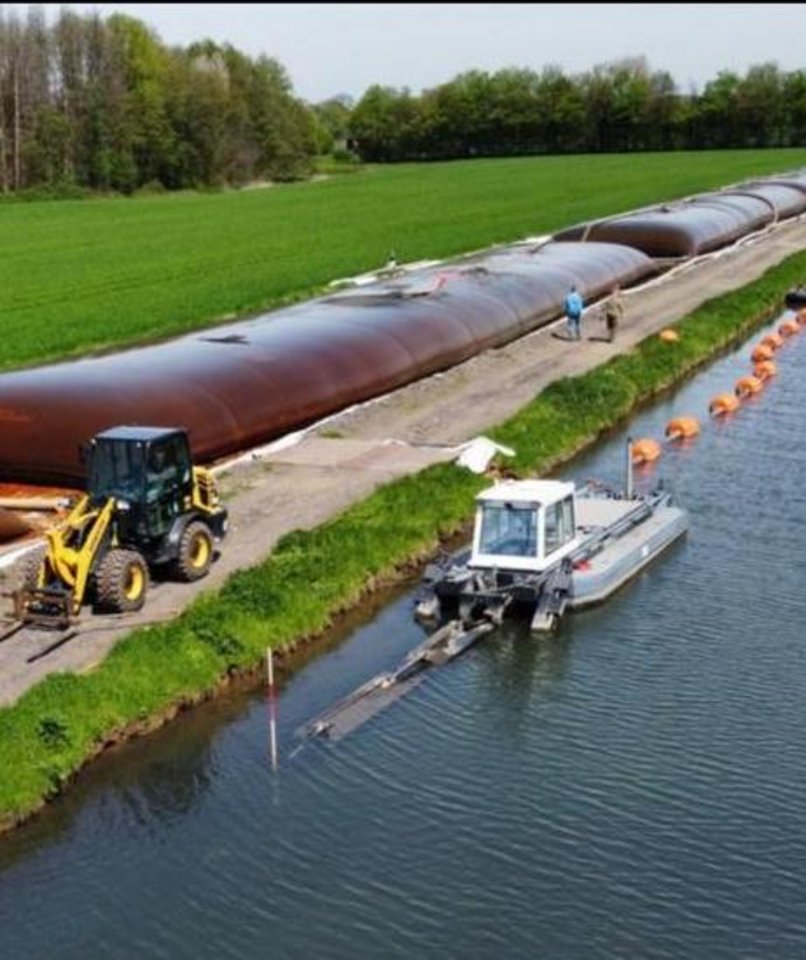

Used self-manoeuvring cutter suction dredger Z-243 for cleaning and desilting bodies of water, with only approx. 600 operating hours. The pump delivers up to approx. 350 m³/h through a 150 mm suction pipe; the dredging depth is approx. 5 m. The main engine is a Deutz with 90 kW (120 hp), the cutter head is rated at 10 kW (13 hp) with a variable, reversible speed of 0-90 rpm.
The dredger measures 13.20 m overall length with extension, 2.90 m width and 2.70 m height, with an operational draught of 0.62 m. The hull consists of several pontoons connected by a proven coupling system and is protected by a marine coating system with cathodic protection. Operation is by one person from a comfortable low-noise cabin. The unit can be dismantled for road transport (largest section: main pontoon with extension, 11.60 x 2.50 x 2.50 m, approx. 10 t) and shipped overseas in containers.
The machine is in used, working condition. Inspection and a function test can be arranged by appointment; worldwide delivery is possible.
